Gate is 5300mm wide and gate height is 1525mm. Overall gate height with wheels and tracks 1.6M. Spearheads fitted to the gate top
$1,600.00
Tax included
Spear Head Sliding Gate 5.3M (SL54)
Product Code : SL54

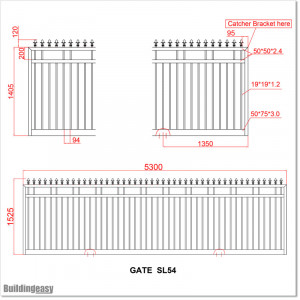

Gate is 5300mm wide and gate height is 1525mm. Overall gate height with wheels and tracks 1.6M. Spearheads fitted to the gate top
Gate is made of 6063 grade aluminum. Top two rails and sides of the gate use 50 X 50 X 2.4mm thick ribbed profile for strength and appearance. Bottom rail 50 X 75 X 3mm thick plain profile to fit gear rack. Vertical pickets use 19 X 19 X 1.2mm square profile. Frame is fully welded. Gate is powder coated in black colour.
Gate comes with following items
- Gate Sliding Tracks
- Concrete Anchors to mount Tracks
- 2 X Gate Wheels
- 4 X S/S Bolts to mount Wheels
- Top Roller Guide
- Close Gate End Stop with Side Bracket (post mount)
- Open Gate End Stop (floor mount)
Gate Posts, Automatic Openers are sold separately and available in our website.
Watch Installation Video and Assembled Gate Video in 360deg rotation.
