Curved Top Double Gate 4.9M (D9)

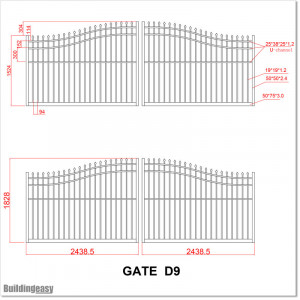

Gate is 4878mm wide (excluding hinge width). Gate height at mid-point is 1828mm and height at ends is 1524mm. Bottom rail is 75 X 50 X 3mm strong bar to fit  gate opener. Side frame is made of 50 x 50mm.

Gate is fabricated with 6063 grade Aluminium. Frame uses 50 X 50 X 2.4mm thick ribbed extruded aluminium for strength and appearance. Frame is fully welded. Vertical pickets use 19 X 19mm and 1.2mm thick square bars. Gap between the pickets is 94mm. Gate is powder coated in black colour.

Gate comes with 4 adjustable hinges. You can choose either GH2 or GH6 hinges depending your requirement before we dispatch. Latches drop bolts etc are sold separately.

Automatic Gate Openers, Gate Posts are also available in our website.
