Curved Top Sliding Gate 5.8M (SL25)

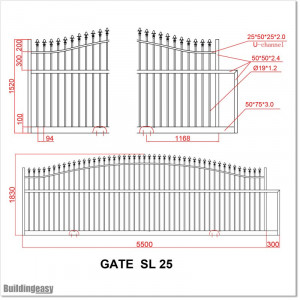

Gate is made of 6063 grade Aluminum. Side frame and middle bars use 50 X 50 X 2.4mm thick ribbed extruded aluminum for strength and appearance. Bottom bar 75 X 50 X 3mm thick plain profile to fit gear rack. Frame is fully welded. Vertical pickets use 19mm and 1.3mm thick round bars. Gap between the pickets is 94mm.

One guide roller is fitted to one post. Second roller guide is fitted to an additional third post. Gate is powder coated in textured Matt black colour. Gate comes with following items.

• Gate Sliding Tracks
• Concrete Anchors to mount Tracks
• 2 X Gate Wheels
• 4 X S/S Bolts to mount Wheels
• 2 X Roller Guide
• Close Gate End Stop with Side Bracket (post mount)
• Open Gate End Stop (floor mount)

Watch Installation Video and Assembled Gate Video in 360deg rotation

Gate Posts, Automatic Openers are sold separately and available in our website.

Watch Assembled Gate Video in 360deg rotation.
