Arch Top Double Gate 3M (D52)

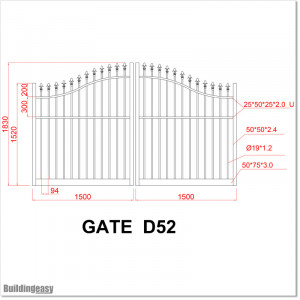

Gate is 3000mm wide (excluding hinge width). Gate height at mid-point is 1830mm and height at ends is 1520mm. Bottom rail is 75 X 50 X 3mm strong bar to fit  gate opener. Side frame is made of 50 x 50mm

Gate is fabricated with 6063 grade Aluminium. Frame uses 50 X 50 X 2.4mm thick ribbed extruded aluminium for strength and appearance. Bottom rail is 75 X 50 X 3mm strong bar to fit  gate opener. Frame is fully welded. Vertical pickets use 19mm Diameter and 1.2mm thick round bars. Gap between the pickets is 94mm. Gate is powder coated in black colour.

Gate comes with 4 adjustable hinges. You can choose either GH2 or GH6 hinges depending your requirement, before we dispatch. Latches, drop bolts etc are sold separately.

Automatic Gate Openers, Gate Posts are also available in our website.
