Video Intercom with Wifi (KPC-1)

Product Code : KPC-1

IP Rated, Vandal Resistance, Stainless Steel, Keypad with 4 Outputs. RFID Card / Tags Reader. This works only with our 2 wire Wifi intercom monitors.

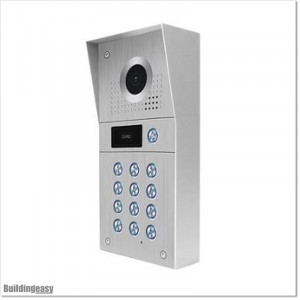

IP Rated, Vandal Resistance, Stainless Steel, Night Vision CCD Camera unit with built in illuminated Keypad. 4 outputs can be used to open main gate and electric lock for pedestrian gate. Two wire connection from power supply this unit.

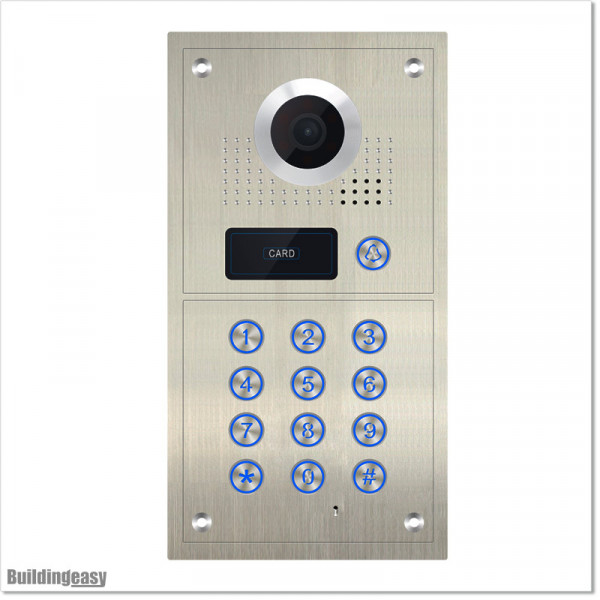

Stainless Steel vandal resistance outdoor unit
6.4mm Colour CCD camera with Infrared night vision video
RFID Card Reader
Built in Keypad with Illuminated key pad to open the gate

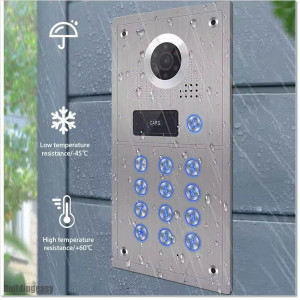

Waterproof to IP54 rating
Flush Mount or Surface Mounting facility

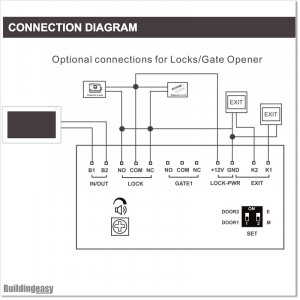

Gate open connection from Outdoor Unit
Connection facility for 2 monitors

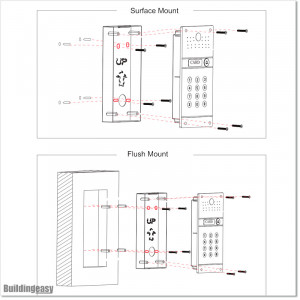

Installation

Take extra precautions if this Intercom is installed without Mounting Bracket. Use silicone sealant to seal screw holes of back polymer cover. Also get the wires from bottom of the back cover.

If using Mounting Bracket for surface mounting, wires need to enter from lower elevation to avoid water getting into the Intercom. Also, silicone seal mounting four holes. Drill a small hole bottom of the Mounting Bracket to drain condensate water
