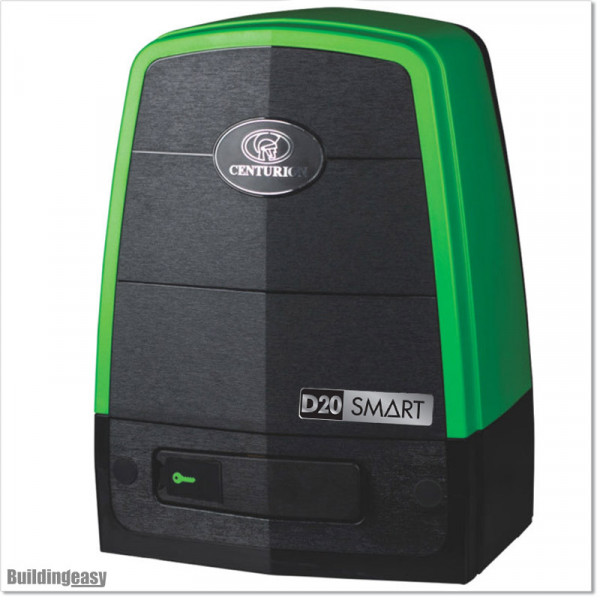

Centurion D20 Smart (SO11)

Product Code : SO11

The legendary high-volume performer. The powerhouse of heavy-duty access control

Quantity

The intelligent choice in commercial and industrial gate automation.

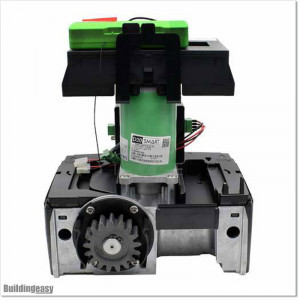

A die-cast aluminium gearbox, coupled to a powerful 24V DC motor and switch-mode charger, makes the D10 SMART / D10 Turbo SMART the automatic choice for townhouse complexes and office parks. We sell this product only to Installers who are familiar with Centurion Sliding Gate Openers. This is directly imported from South Africa.

D10 Smart Gate Opener can also use specific Smart Wireless Photocell(fully wireless).

Kit comes with
  • D20 Smart Gate Opener

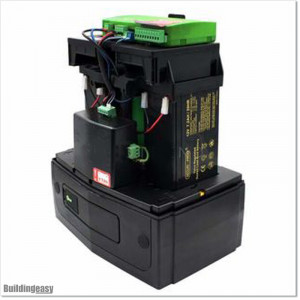

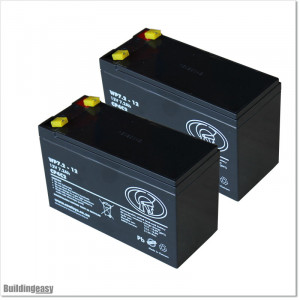

  • 2 X Batteries 7AHr

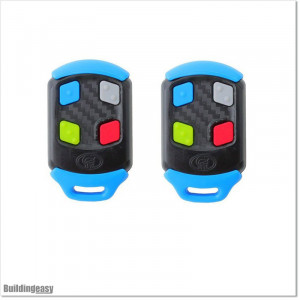

  • 2 X Nova 4 Button Remotes
  • Mounting Accessories
Technical Data D10-SMART:
  • Input voltage: 90V - 240V AC +/-10% @ 50Hz
  • Current consumption (Mains): 250mA
  • Battery charger current output: 1.8A
  • Maximum number of operations per day average: 750
  • Duty cycle with Mains Present: 45%
  • Motor voltage: 24V DC
  • Motor power supply: Battery-driven (Standard Capacity – 2X12V-7AHr)
  • Current consumption (motor at rated load): 9A
  • Inputs: 1-4: 100mA (12/24V)
  •  Outputs: 5 and 6: 3A (12/24V) 10sec Pulse
  • Motor push force – starting: 52kgf
  • Motor push force – rated: 39kgf
  • Gate mass – maximum: 2000kg
  • Gate length – maximum: 25m
  • Gate speed (varies with load): Up to 18m/min
  • Collision Sensing: Electronic
  • Operating temperature range -15°C to +50°C

SO11

Data sheet

Material
Aluminium / Polymer
Maximum Gate Weight
2000Kg
Supply Voltage
230V
Gate Opener Type
Sliding Opener
