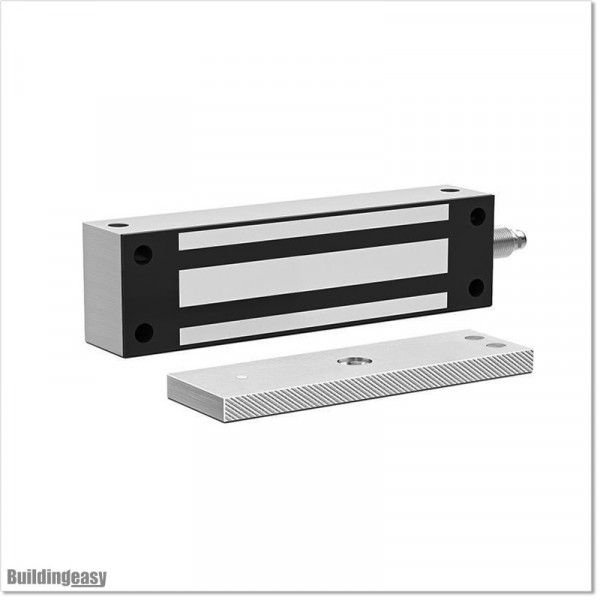

Magnetic Gate Lock (GLE2)

This is a waterproof (IP65) electromagnetic lock that can be used with a 12V DC or 24V DC power supply. This lock has six different mounting holes. Face mounting or side mounting is a great feature. The lock exterior is made of a grade of stainless steel.

The gate lock works when there is power to the lock. This lock works with automatic gate openers connected through an N/C relay. It can also be used for pedestrian gates with our uninterrupted power supply. Delay time in the power supply can be used with a push button or remote control. The keypad connects with an inbuilt delay for pedestrian gates.

Technical Specifications:

• Lock Size: 220L x 47W x 25H (mm)
• Armature plate: 178L x33W x 10H (mm)
• Holding Force: 280kg
• Voltage: DC12V or DC24V (selectable 4 wire)
• Current Draw: 12V/450mA 24V/225mA
• Signal Output: Dry Contact, Max Rating of Contact Current 3A
• Suitable for: Pedestrian Gates, Wooden door, Glass door, Metal door
• Operating Temp: -10 to +55℃
• Suitable Humidity: 0 to 90% (non-condensing)
