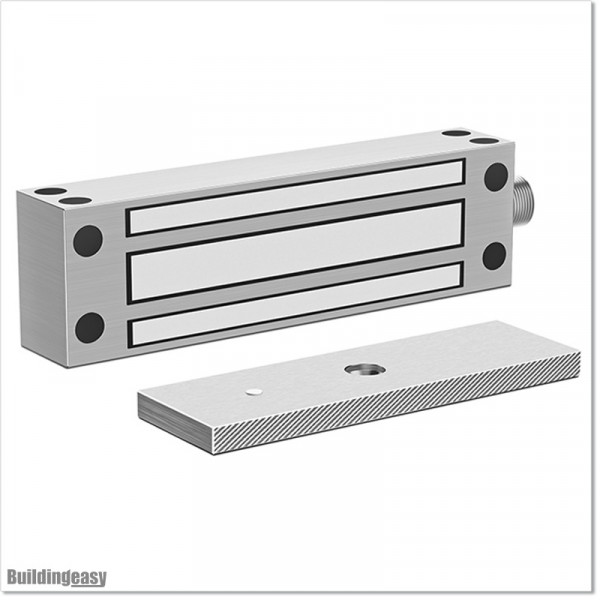

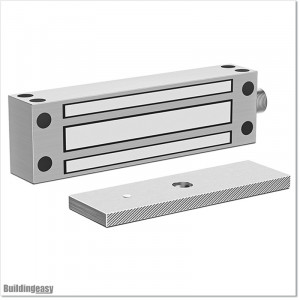

Magnetic Gate Lock Extra Heavy Duty (GLE22P)

This is a heavy duty waterproof (IP67) electromagnetic lock that can be used with a 12V DC or 24V DC power supply. This lock has six different mounting holes. Face mounting or side mounting is a great feature. The lock exterior is made of a grade of stainless steel. Weight of the lock 4.9Kg

• Use a strong power supply; the output voltage should be DC 12V ±10%.
• Use a cable with a gauge of 0.75mm or higher.
• Do not damage the galvanization layer during installation.
• The rubber ring must be used between the armature plate and the gate; do not over tighten the screw. Keep the rubber ring elastic.
• Clean the slushing oil with a cloth; do not use alkaline or harsh cleaners.

Technical Specifications:

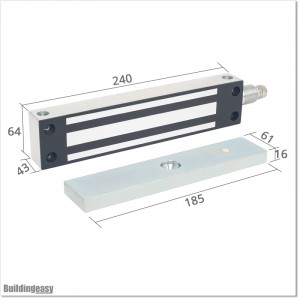

• Lock Size: 240L x 64W x 43H (mm)
• Armature plate: 185L x 61W x 16H (mm)
• Holding Force: 500kg
• Voltage: DC12V or DC24V (selectable 7 wire)
• Current Draw: 12V/460mA 24V/220mA
• Signal Output: Dry Contact, Max Rating of Contact Current 3A
• Suitable for: Pedestrian Gates, Wooden door, Glass door, Metal door
• Operating Temp: -10 to +55℃
• Suitable Humidity: 0 to 90% (non-condensing)
