CARTELL CW-SEN Wireless Sensor

CW-SEN is a additional sensor

Sensing Puck needs to be buried 13 cm to 20 cm in ground. There are three Sensitivity adjustment inside the Puck.

Install CW-SYS at least:

• • 6-10 feet away from buried power, telephone, or invisible dog fence
• • 10 feet away from natural gas lines
• • 20 feet away from power pole with a transformer
• • 100 feet back from railroad traffic
• • 200 feet away from high power substation power lines
• • 80-100 feet back from gate operator

Senser(Puck) Technical Specifications:

• Power Required 2 X CR123A batteries (not included due to air cargo restrictions)
• Stand-By Current 22 μA
• Alarm Current 130 mA
• Radio Range Tested above ground with no obstructions up to 500M
• Battery Life 1-3 years
• Enclosure Rating IP68
• Strength Rating 9.39 ton-force (8514 kgf)
• Temperature Range (-32° C. – 60° C.)
• Dimensions 11.43 cm x 6.35 cm
• Weight 0.9 kg

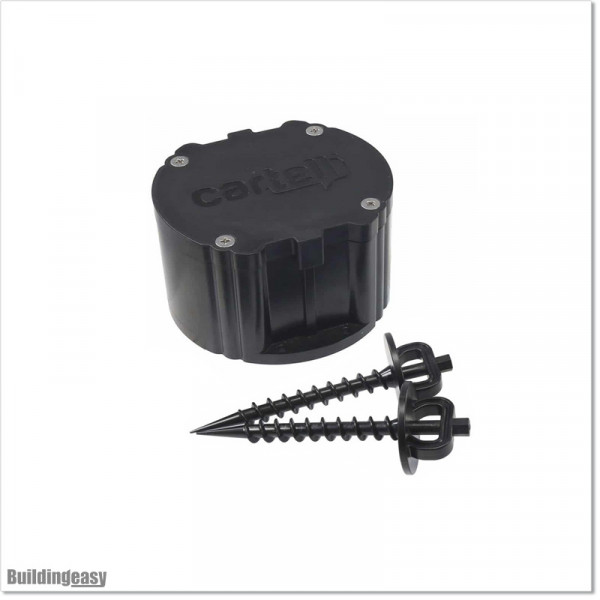

Package comes with:

• Sensor Puck -1
• Auger Screws – 2

Watch Application and Wiring Videos here
