Cartell CW-SYS Wireless Free Exit with Sounder CW-SOU is a wireless Dual-Purpose system. Made in USA. Winner of SIA New Product Award
CARTELL CW-SYS with Sounder (CW-ULT)
Product Code : CW-ULT
Cartell CW-SYS Wireless Free Exit with Sounder CW-SOU is a wireless Dual-Purpose system. Made in USA. Winner of SIA New Product Award
CW-SYS is a wireless Dual-Purpose system that connects to existing security/home automation system and gate operators. Sensor is self-contained, housing an internal transmitter and antenna. Absolutely no trenching and installs in under an hour. Install sensor beside driveway, in the driveway, or on a post adjacent to the drive.

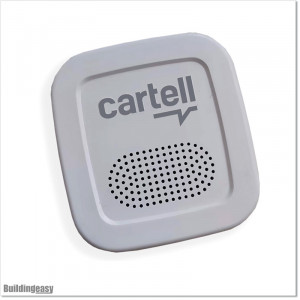

Sounders to be alerted when someone enters your driveway no matter where you are in your home. Choose from over 25 sounds with our intuitive menu with voice prompts
Sensing Puck needs to be buried 13 cm to 20 cm in ground. There are three Sensitivity adjustment inside the Puck.
Install CW-SYS at least:
- • 6-10 feet away from buried power, telephone, or invisible dog fence
- • 10 feet away from natural gas lines
- • 20 feet away from power pole with a transformer
- • 100 feet back from railroad traffic
- • 200 feet away from high power substation power lines
- • 80-100 feet back from gate operator

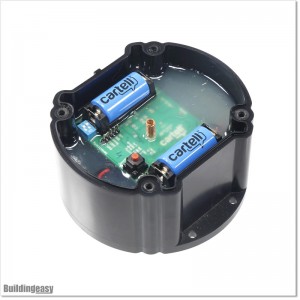

Senser(Puck) Technical Specifications:
- Power Required 2 X CR123A batteries (not included due to air cargo restrictions)
- Stand-By Current 22 μA
- Alarm Current 130 mA
- Radio Range Tested above ground with no obstructions up to 500M
- Battery Life 1-3 years
- Enclosure Rating IP68
- Strength Rating 9.39 ton-force (8514 kgf)
- Temperature Range (-32° C. – 60° C.)
- Dimensions 11.43 cm x 6.35 cm
- Weight 0.9 kg

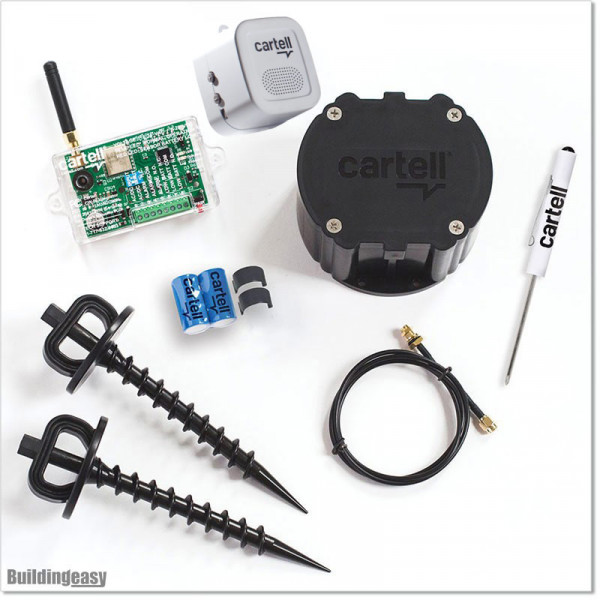

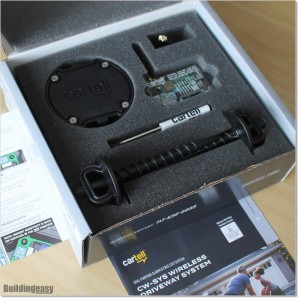

Package comes with:
- Sensor Puck -1

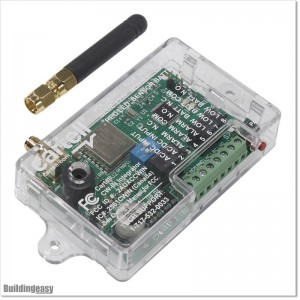

- Integrator – 1
- Sounder
- Auger Screws – 2
- Battery - 2
- Battery Clips – 2
- Coaxial Cable – 1
- Terminal Block Screwdriver – 1
