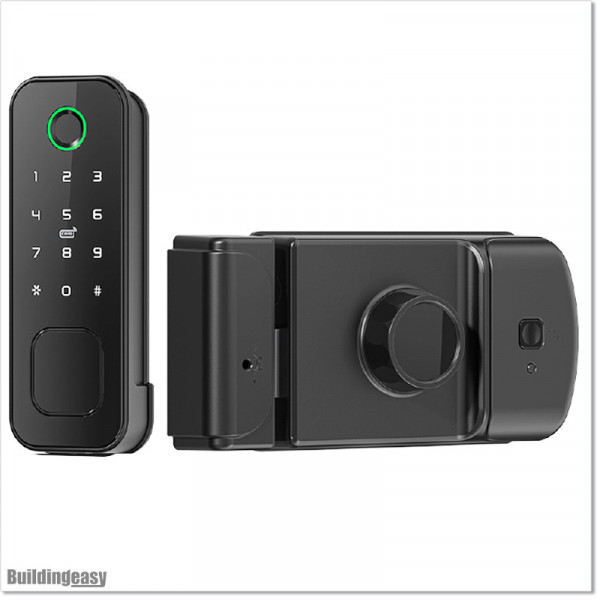

Smart Door Lock (TK-R1)

Function Description

• Administrator information: refer to fingerprint, password or IC card administrator.
• Unlock information: refer to the registered fingerprint, password or IC card information (including the administrator and user).
• Key is for deleting/backspace operation. Three consecutive operations will clean all the input information.

Factory initial status

• Factory initial password it 123456#. All fingerprints IC card or 4 digits password is able to unlock under factory initial status.
• When finish administrator registration, unregistered fingerprint, IC card or password will fail to unlock.

Other

• 5 times wrong password input will cause a 30 second keypad lock. During these 30 seconds, lock will not respond to any operation.
• Anti-peeping password function: unlock by inputting before or after the correct password some random number (no more than 16 bits) then end by (#) key.
• The lock will give out warning alarm every unlock operation when voltage is lower than 4.8V. Please replace the battery as soon as possible
