Two Outputs, Water proof and 1200 user capacity. Vandal resistance with metal construction
Keypads

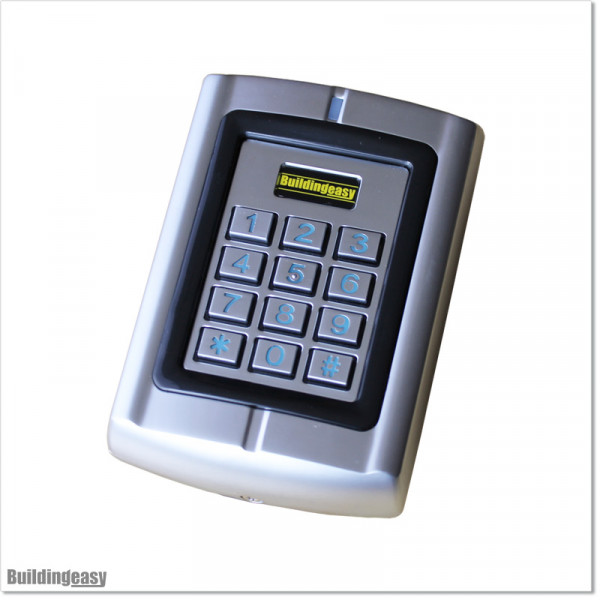

Keypad (KPAD42)

$160.00
Tax included

Two Outputs, Water proof and 1200 user capacity. Vandal resistance with metal construction. Inbuilt RFID reader for swipe cards and tags.

Quantity
Add to Wishlist
Add to Compare

Guarantee Safe & Secure Checkout
Product payments
Main Features
  • Waterproof to IP65
  • Two Relay Outputs
  • Zone 1: 1100 PIN Numbers
  • Zone 2: 100 PIN Numbers
  • Use PIN, Cards or PIN and Cards combined
  • In built RFID reader for Cards and Tags
  • Pulse Mode / Toggle Mode
Technical Details
  • Work Voltage： 12 - 24VDC / 12 – 18VAC
  • Active Current: 60mA
  • Idle Current:  25mA
  • Reading Range：3 to 8cm
  • Ambient Temperature：-40℃ to 60℃
  • Ambient Humidity：5% to 95%
  • Electrical lock output：2A
  • Alarm output：20A
  • Open time：0 to 99 seconds (adjustable)
  • Dimensions:  128 X 82 X 28
KPAD42
