Seven days / 24 hour timer switch. Powered by 12VDC supply. This timer can be used with access control systems to control its function during certain times of the day. Relay output can be used to switch an output.

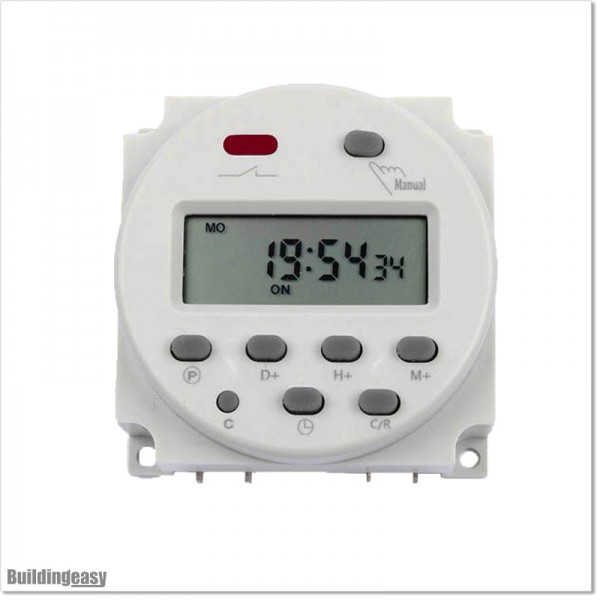

Timer Switch (TIME1)
$80.00
Tax included
Seven days / 24 hour timer switch. Powered by 12VDC supply. This timer can be used with access control systems to control its function during certain times of the day. Relay output can be used to switch an output.
Guarantee Safe & Secure Checkout
Seven days / 24 hour timer switch. Powered by 12VDC supply. This timer can be used with access control systems to control its function during certain times of the day. Relay output can be used to switch an output.
How to use it
|
Step |
Key |
Programming |
|
|
1 |
Press P |
Setting1 ON time(display 1on) |
|
|
2 |
Press H+/M+ |
Setting hours and minutes |
|
|
3 |
Press D+ |
To select same every day,or different time each day |
|
|
4 |
Press P |
Setting 1 off time (display 1 off) |
|
|
5 |
Press H+/M+ |
Setting hours and minutes turn off time |
|
|
6 |
Press D+ |
If you want the same every day, you need not press this key |
|
|
7 |
Repeat step2-6 |
Set 2-17 on/off time |
|
|
8 |
Press |
end |
|
TIME1
