$200.00
Tax included

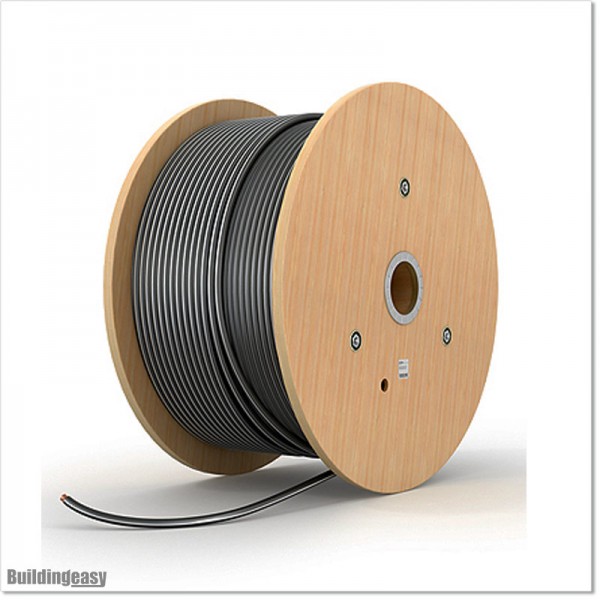

Low Volt Power Cable 2.1mm (100M)

Product Code : CABDB14

Low-voltage direct burial underground pure copper cable 2.08mm (14AWG). Use for Automatic Gate Openers, Landscape Lighting and Security Lighting applications not exceeding 50 Volts.

Quantity

Low-voltage underground pure copper cable 2.08mm (14AWG). Use for Automatic Gate Openers, Landscape Lighting and Security Lighting applications not exceeding 50 Volts. Direct burial and sunlight resistant cable has black PVC insulation jacket.



If use with 24V Automatic Gate Openers maximum distance is 70M.

If use with 12V Automatic Gate Openers maximum distance is 60M.



Manufactured with two bare annealed flexible stranded copper conductors and premium-grade PVC insulation/jacket material. Conductors are duplexed in a flat construction to promote easy tear down during installation.



AWG 14 (2.08mm) Pure Copper Conductors

Resistance of conductors Maximum 8.88/Km (at 20 Deg C)

Rated 50 Volts (Do not exceed 50V)

Operating Temperature -20°C to 60°C

Outdoor Use (Sunlight Resistant)

Suitable for Direct Burial

41 Stranded Copper Conductors

Black PVC Insulation Jacket 0.52mm thick

Cable outer cross section is 4.3 X 8.9mm



SPECIFICATIONS:

UL 1493

CSA

Requirements of the NEC

RoHS Compliant

CABDB14
