IP68 waterproof rating and 2000 user capacity. Vandal resistance with metal construction. This works with all of our Automatic Gate Openers. Inbuilt RFID reader for swipe cards and tags.

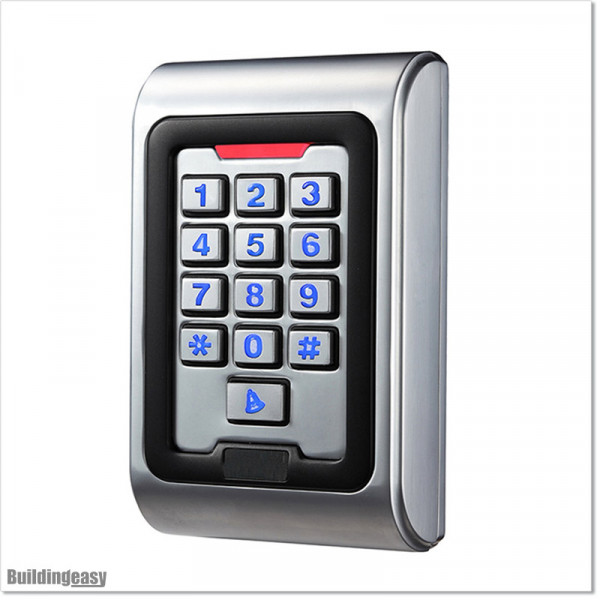

Keypad (KPAD71)
$160.00
Tax included
IP68 waterproof rating and 2000 user capacity. Vandal resistance with metal construction. This works with all of our Automatic Gate Openers. Inbuilt RFID reader for swipe cards and tags.
Guarantee Safe & Secure Checkout
IP68 waterproof rating and 2000 user capacity. Vandal resistance with metal construction. This works with all of our Automatic Gate Openers. Inbuilt RFID reader for swipe cards and tags.
Main Features:
- Use PIN, Cards or PIN and Cards combined
- In built RFID reader for Cards and Tags
- Facility to connect an external Bell
- Built in buzzer
- Back lit Keypad
- Facility to connect external alarm equipment
- Adjustable Output time, Alarm time, open time
- Built in light dependent resistor (LDR) for anti-tamper
- 9-28V DC power input
- Set up PIN or Cards by remote computer by wireless using our Optional Controller work on TCP/IP (Standalone with Wigand 26 input & output)
Technical Details
- Work Voltage： DC9-28V
- Static Current：≤30mA
- Reading Range：3 to 8cm
- Capacity: 2000 users
- Ambient Temperature：-25℃ to 60℃
- Ambient Humidity：10% to 90%
- Electrical lock output：≤3A
- Alarm output：≤20A
- Output short circuit protection time：≤100μS
- Open time：0 to 99 seconds (adjustable)
- Size：120 *56*18mm
KPAD71
4 Items
New
